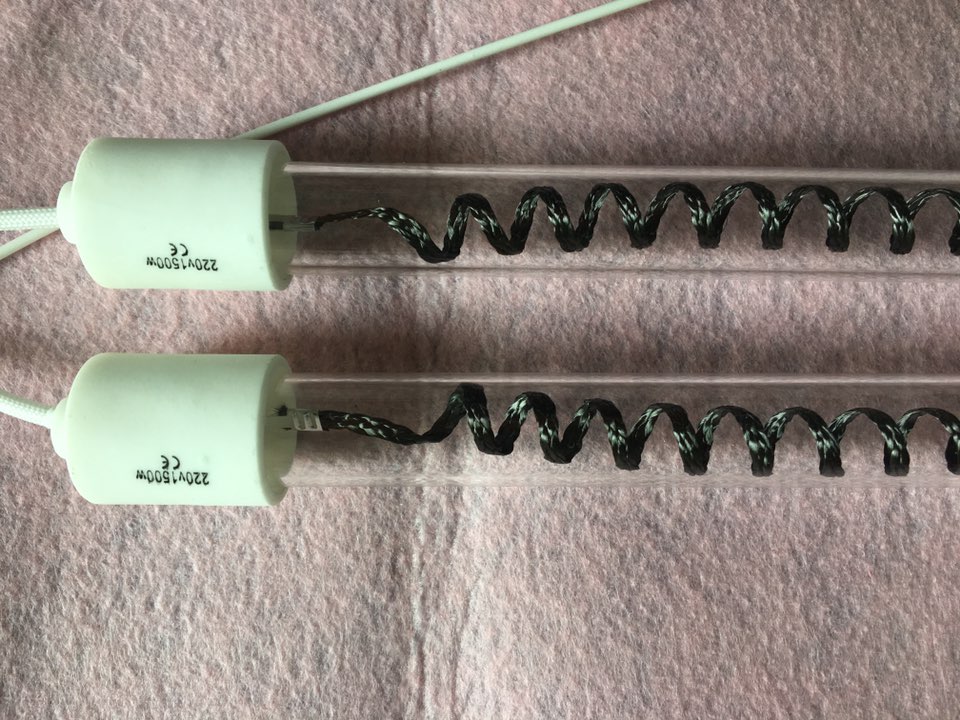

quartz carbon infrared heating element

May 22, 2026

Introduction

We make quartz carbon infrared heating elements for the machines that demand serious, focused heat—fast. These aren’t about warming up a big room. They’re about packing a ton of power into a small tube, so you get intense heat exactly where you need it, when you need it.

The Nitty-Gritty

Here’s the thing: we design these to run at high voltage, typically around 400V. That’s how we push the right current through the carbon filament without needing wiring that’s oversized and clunky. The wattage is matched to the tube length—so a 300mm tube, for example, is around 2500W. That gives you predictable heat output for the space it takes up. It means you get a quick warm-up and steady performance. But, and this is important, it also means your control system and cooling setup need to be ready to handle that thermal punch.

What’s Inside

The quartz envelope is built for the heat. It can take high temperatures and handles the shock of rapid on-off cycling without cracking. Inside, the carbon filament throws off a broad infrared spectrum that just works with a lot of materials. We also fill the tube with halogen gas. This helps stop the filament from evaporating, which keeps the output consistent over time. And for the connection? We use an R7s connector. It’s industrial-grade, straightforward, and makes it easy to wire the tube right into your existing fixture. A straight swap, no fuss.

Where It Shines

These elements are for the jobs that need intense, pinpoint heating. Think PET blowing, thermoforming, coating curing, and plastic welding. The fast response time helps you cut down on cycle times, and the compact size slips into tight spots. Just keep in mind, that high heat density is powerful. Plan your ventilation and thermal isolation so the other parts in your machine don’t get cooked.
